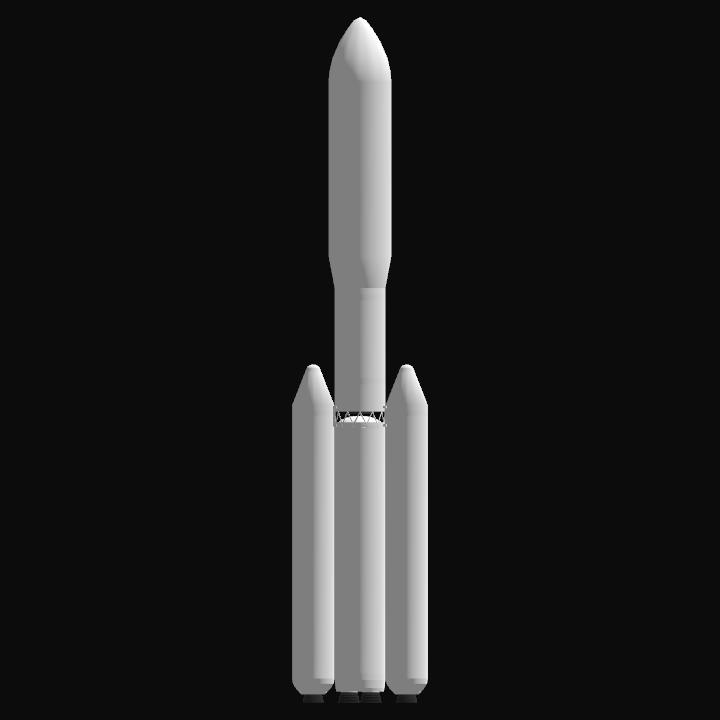

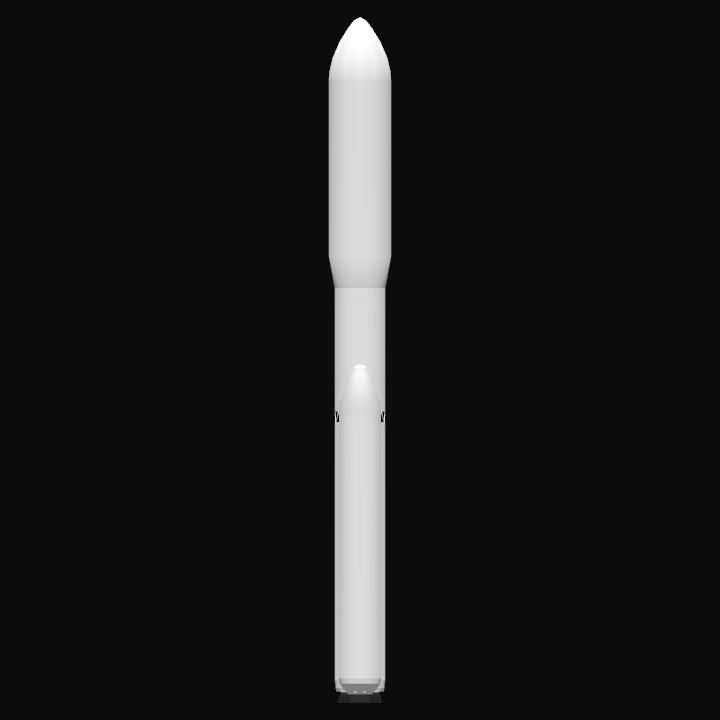

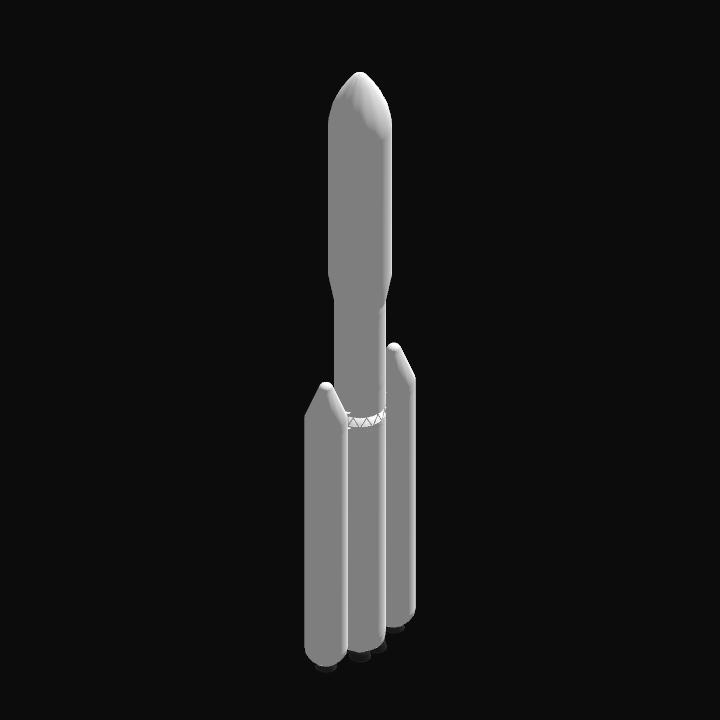

Orbit 9 is the last launch vehicle in the Orbit series. The next series is 'Azure,' which is intended to be somewhat more based on historical launch vehicles.
Orbit 9 has a 3m core diameter. The first stage consists of 4 399kN kerolox gas generators and 2 1,310kN SRBs, and the second stage uses a single hot-staged 261kN kerolox gas generator.
It has 2 optional upper stages (that can also be used together), which are the hydrolox upper stage from Orbit 8 and the 2-stage SRM kick-motor from Orbit 8.
It has a total height of 40.6m, a fairing diameter of 3.7m and an estimated payload capacity of 30t (using a configuration with the base vehicle, the SRBs and only the hydrolox upper stage).
GENERAL INFO
- Created On: Windows
- Game Version: 1.3.204.1
- Price: $16,281k
- Number of Parts: 149
- Dimensions: 41 m x 4 m x 8 m
PERFORMANCE
- Total Delta V: 5.8km/s
- Total Thrust: 5.1MN
- Engines: 15
- Wet Mass: 2.24E+5kg
- Dry Mass: 30,091kg
STAGES
| Stage | Engines | Delta V | Thrust | Burn | Mass |
|---|---|---|---|---|---|
| 1 | 6 | 3.2km/s | 4.7MN | 85s | 2.24E+5kg |
| 3 | 1 | 589m/s | 261kN | 3.7m | 1.1E+5kg |
| 7 | 2 | 2.0km/s | 124kN | 3.5m | 16,268kg |
| 9 | 0 | 0m/s | 0N | 0s | 7,965kg |
| 10 | 0 | 0m/s | 0N | 0s | 7,965kg |
| 12 | 0 | 0m/s | 0N | 0s | 7,965kg |
