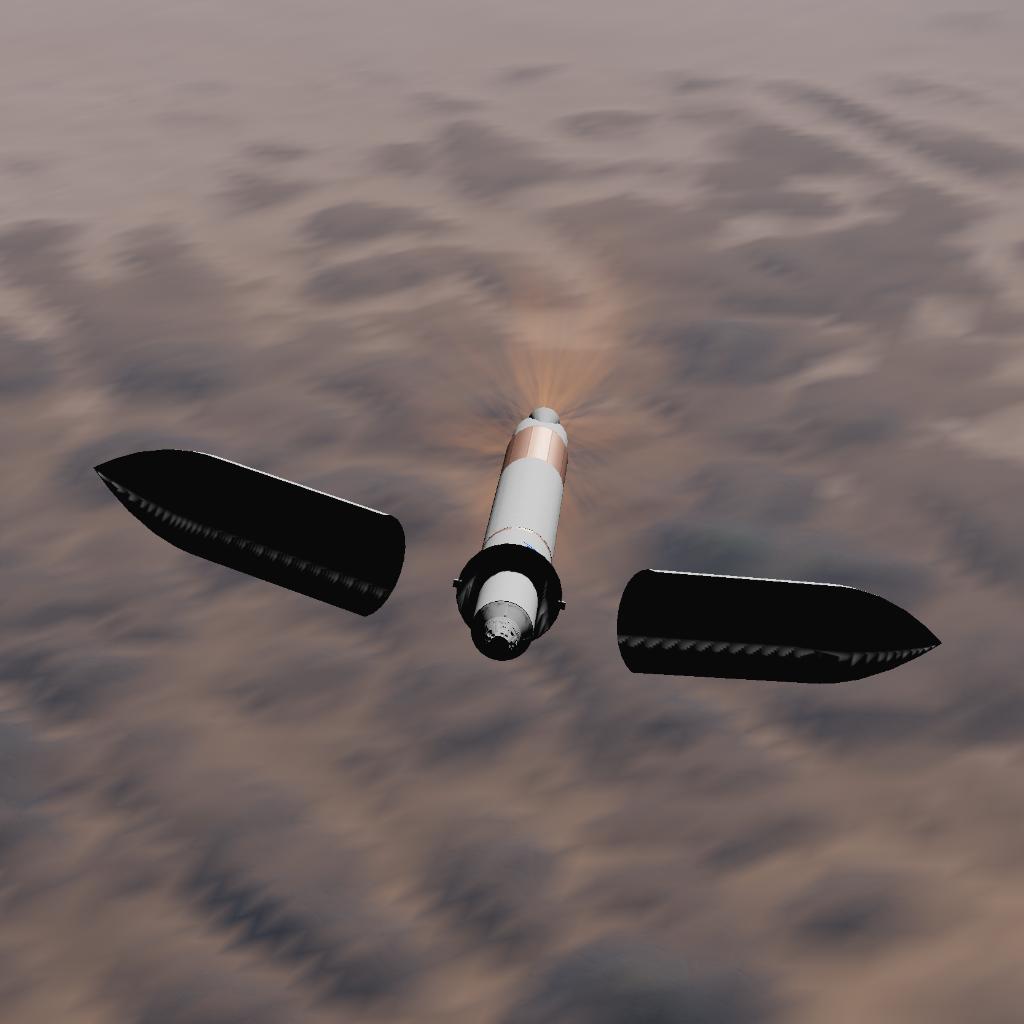

The Atlas V is a space launch vehicle that has been flying since 2002. Originally, the Atlas V was operated by the US Air Force, but starting in 2007, it was operated by ULA. The Atlas V has many different configurations, but this craft is based on the Atlas V 551. Its first stage is a CCB (Common Core Booster) and it uses one RD-180 engine. The second stage is a Common Centaur and it uses one RL10C-1 engine. Also, it has 5 GEM 63 boosters attached to the sides of the first stage. The fairing is mounted on top of the first stage, and the centaur and payload sit inside the fairing.
Note: The ULA logo on the rocket is not mine, it is by CentaurAerospace. You can download it here.
GENERAL INFO
- Created On: iOS
- Game Version: 1.2.109.0
- Price: $44,318k
- Number of Parts: 199
- Dimensions: 55 m x 14 m x 16 m
PERFORMANCE
- Total Delta V: 7.6km/s
- Total Thrust: 13.3MN
- Engines: 8
- Wet Mass: 7.23E+5kg
- Dry Mass: 60,981kg
STAGES
| Stage | Engines | Delta V | Thrust | Burn | Mass |
|---|---|---|---|---|---|
| 1 | 7 | 3.9km/s | 13.2MN | 69s | 2.67E+5kg |
| 4 | 1 | 3.7km/s | 115kN | 6.1m | 16,601kg |
